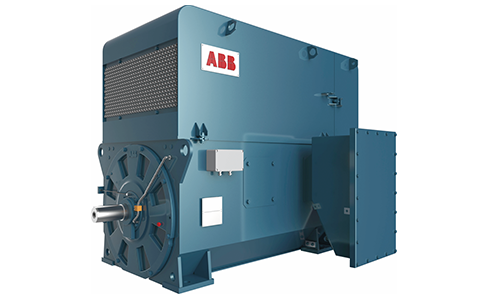

NMI Modular High-voltage Motor

NMI Modular High-voltage Motor

The optimized design of ABB's modular induction motor NMI series is suitable for the needs of different applications in power, water and sewage treatment, mining, ports, petrochemicals, papermaking, steel and metallurgy, transportation and other industries. It can drive motors that operate in safe areas, including Pumps, fans, compressors, belt conveyors, paper machines, rolling mills and other mechanical equipment.

  • Brand： ABB
  • Type： NMI
  • Energy Efficiency Rating：
  • Output Power：
  • Frame：

Product Introduction Of NMI Modular High-voltage Motor Series

ABB's high-voltage modular induction motors deliver high efficiency, reliability and availability in harsh and demanding applications. Developed on ABB's successful modular motor platform, ABB's high-voltage modular induction motors comply with all relevant international standards, are optimized for variable speed control and are rigorously tested at every stage of production.

NMI series high-voltage motors provide users with three main cooling methods: air-air, air-water, and open cooling, as well as a variety of modular design configurations, with power up to 8000kW, to meet customer needs for motor configuration. The optimized design of ABB's modular induction motor NMI series is suitable for the needs of different applications in power, water and sewage treatment, mining, ports, petrochemicals, papermaking, steel and metallurgy, transportation and other industries. It can drive motors that operate in safe areas, including Pumps, fans, compressors, belt conveyors, paper machines, rolling mills and other mechanical equipment.

NMI Modular High-voltage Motor Series Product Parameters

  • Standard: IEC

  • Power range: 100-8,000kW

  • Frame size: 355-630mm

  • Number of poles: 2-16P

  • Voltage: 13.8kV

  • Insulation temperature rise grade: F/B

  • Installation method: B3/B35/VI (can withstand thrust)

  • Cooling method: IC611/IC81W/IC01

  • Protection level: IP23/IP24/IP55

  • Efficiency: National Energy Efficiency GB3, GB2

  • Vibration level: ISO *

  • Origin: China, India

Product Advantages Of NMI Modular High-voltage Motor Series

  • Three main cooling methods (air-to-air cooling, air-to-water cooling, and open type) meet the needs of different working conditions.

  • A variety of high-thrust bearing solutions are available to easily cope with high-thrust requirements such as circulating water pumps.

  • High power density reduces installation and purchasing costs.

  • Optimized circulation air duct design, high cooling efficiency and long life cycle.

  • Standard selection catalog, standardized design (CTO), convenient selection, and fast delivery of drawings and products.
