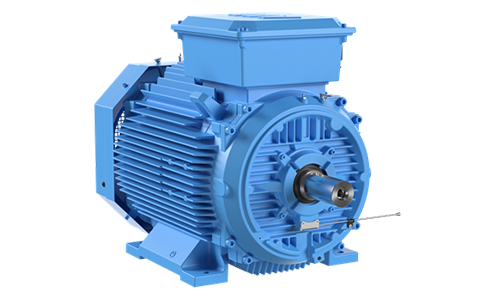

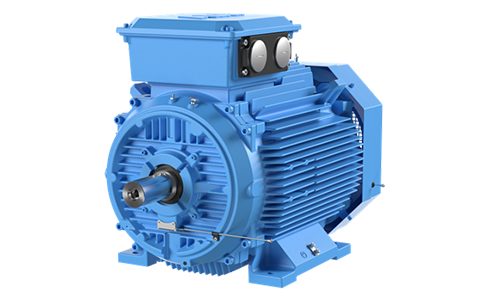

Main features and advantages of M3BP high-performance process motors:
ABB M3BP series motors are high-efficiency process motors introduced by Shanghai ABB Motor Co., Ltd. to introduce advanced European technology, produced domestically, and supplied to the global market. This series of motors has the characteristics of high efficiency and high reliability, and can meet the needs of different industries for high-efficiency motors. For example, the motor's ability to operate under heavy loads under harsh working conditions can meet the needs of the port and shipping industry; The high-precision continuous operation capability can be successfully used in papermaking, metallurgy and other industries.
ABB motor M3BP series process motors are highly reliable and adopt high-quality grades. They are suitable for harsh requirements and continuous operation. They have a design service life of up to 30 years. They are efficient and energy-saving. They comply with the IEC International Electrotechnical Commission IE3 high-efficiency motor standards. They have low vibration and are suitable for applications. Frequency conversion control, low noise, etc.
ABB motor M3BP series process motor related parameters:
Model：M3BP
Efficiency：IE2,IE3,IE4
Frame Size：H71-H450
Power Range：0.09-1000kW
Pole：2P~12P
Frequency：0~100Hz
Voltage：220~1000V
Protection Level：IP55/IP56/IP65/IP66
Cooling Method：IC411/IC416/IC418
Start Mode：DOL/VSD
Brake：YES
Encoder：YES
Options：300+
Energy Efficiency Standards：EU,CN,AU,BR,KR,UL,RS,SABS
Ship Inspection Certificate：CCS,BV,ABS,KR,LR,NK...
ABB motor M3BP series process motor industry applications:
1. Port industry: lifting, carts, trolleys, pitching, belt conveyors;
2. Marine industry: winches, anchor mixers, main thrusters, side thrusters, and cranes;
3. Electric power industry: air cooling island, conveyor belt;
4. Papermaking industry: papermaking and pulping equipment;
5. Metallurgical industry: lifting, steel plant equipment.
