Introduction To M2QA-H Series Marine Three-phase Asynchronous Motor

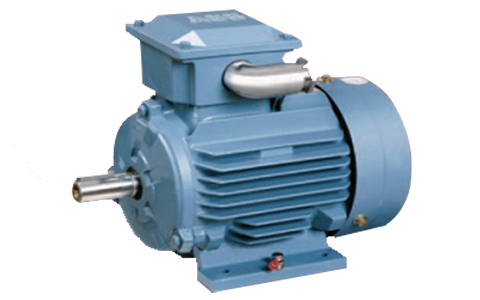

The M2QA series marine three-phase asynchronous motor is the latest generation of marine mechanical equipment in the M2000 series of ABB Electric Company. Its casing is made of high-strength cast iron to avoid secondary damage. Specially designed and manufactured, it has the advantages of high efficiency and large starting torque, and is suitable for driving various marine machinery, such as pumps, ventilators, separators, hydraulic machinery, auxiliary equipment and other equipment with similar marine requirements. The motor is designed in strict accordance with the national standards GB755 "Ratings and Performance of Rotating Electrical Machines" and ZC "Code for Construction of Sea-going Steel Ships", and has been approved by the National Ship Inspection Bureau and obtained the China Classification Society (CCS) type approval certificate. It also complies with international standards such as ABS, BV, DNV, GL, IEC, KR, LR, NK and relevant classification society regulations.
M2QA-H Series Marine Three-phase Asynchronous Motor Related Parameters
Model：M2QA-H
Efficiency：IE2,IE3
Frame Size：H71-H355
Power Range：0.18-315kW
Pole：2P~8P
Frequency：5~100Hz
Voltage：220-240V（50HZ）/ 380-420V（50HZ）/ 660-690V（50HZ）/ 440-480V（60HZ）
Protection Level：IP55/IP56/IP65
Cooling Method：IC411/IC416/IC418
Start Mode：DOL/VSD
Brake：YES
Encoder：YES
Options：150+
Energy Efficiency Standards：CN,EU
Ship Inspection Certificate：CCS,BV,ABS,KR,LR,NK etc.
Conditions of Use:
The altitude does not exceed 1000M
Ambient temperature is -20℃-40℃
Working mode: continuous (S1)
Bearing: Japan NSK bearing
If the user requires a specific working voltage, it can be supplied according to special requirements.
1.The motor meets the following standards
International Electrotechnical Commission IEC34, IEC72
Australian Standard AS1359-2
British Standard BS4999-5000
German standard DIN42673
Comply with European Community “CE” marking requirements
The motor complies with GB755 (idt IEC 60034-1), GB10069 (neq IEC 60034-9), Q/JBQS28
2. Superior motor performance
Low noise, low vibration
Through optimized design and process improvement, the noise and vibration of QA series motors have been greatly reduced and have reached the international advanced level.
High performance protection level
The standard design protection level of the motor is IP55, and higher protection levels can be provided according to customer requirements.
Suitable for wide voltage use
The motor design takes into account the voltage changes in different regions, making the motor suitable for use in multiple regions and ensuring user performance.
Improve the insulation level and increase the service life of the motor
The standard motor adopts an F-class insulation structure, which improves the service life of the motor and increases the reliability of the motor.
high efficiency
The motor adopts an optimized design, has high efficiency, and can produce considerable energy-saving effects.
3. Reasonable structural design
Flexible pinout direction
The motor junction box can be installed on the top, left or right side of the motor. The junction box itself can be rotated and installed. The junction box of the 71-132 base can be rotated in 4*90 directions. The junction box of base 160 and above can be rotated in 2*180 directions. Users must indicate the direction of the junction box and outlet holes when ordering.
Beautiful motor shape
The heat dissipation ribs of the machine base are designed to be distributed vertically and horizontally. The end caps, junction boxes, and air hoods are all newly designed, with a unique and beautiful appearance.
4. Numerous choices to meet various user needs
Install a thermistor
Install dustproof sealing ring
Install heating tape
Install oil-proof sealing ring
Install oil nozzle
Special shaft extension, special flange and other requirements
